FLIR MR60 Pro Pinless Moisture Meter (plus external Pin Probe)
$719 Incl. GST.
The FLIR MR60 Moisture Meter Pro is an easy-to-use pin and pinless moisture meter with advanced functionality. An integrated pinless sensor and an external pin probe provide the flexibility to take destructive or non-destructive measurements. Select one of the eleven material groups for pin moisture, or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time, and settings.
Videos
Description
The FLIR MR60 Moisture Meter Pro is an easy-to-use pin and pinless moisture meter with advanced functionality. An integrated pinless sensor and an external pin probe provide the flexibility to take destructive or non-destructive measurements. Select one of the eleven material groups for pin moisture, or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time, and settings.
DESTRUCTIVE OR NON-DESTRUCTIVE MEASUREMENTS
Integrated pinless moisture sensor and an external pin probe included for resistive moisture content measurements in a variety of substrates.
CLEAR, ACCURATE READINGS
Choose from 11 material group selections for pin-based readings, then save up to 10,000 screenshots to transfer and view via PC/USB.
SIMPLE TO USE AND CREATE REPORTS
Features an easy-to-read display and intuitive user interface. Save files and generate reports with free FLIR Tools software.
Features:
- Flexibility of Pinless or Pin Moisture Readings
- Robust and Compact Design
- Colour Graphical Display
- User Definable Alarm Thresholds
- 11 Material Groups (for Pin Readings)
- Save up to 10,000 Screen Shots and Download into a CSV File
- Generate Reports with Free FLIR Tools™ Software
- Easy to Use
Whats Included
- QuikStick Short – POL8751

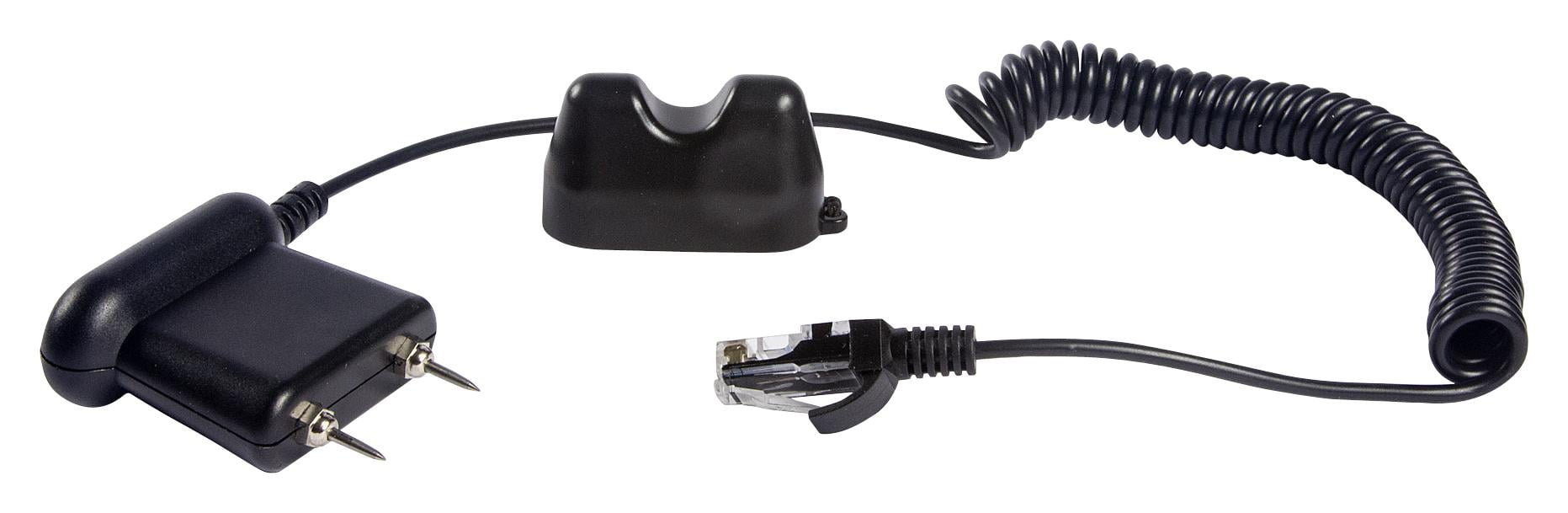

- Heavy Duty Moisture Probe – BLD5060
- Calcheck Device – BLD5086
- Operators Instructions
- 9v Battery
- Pouch

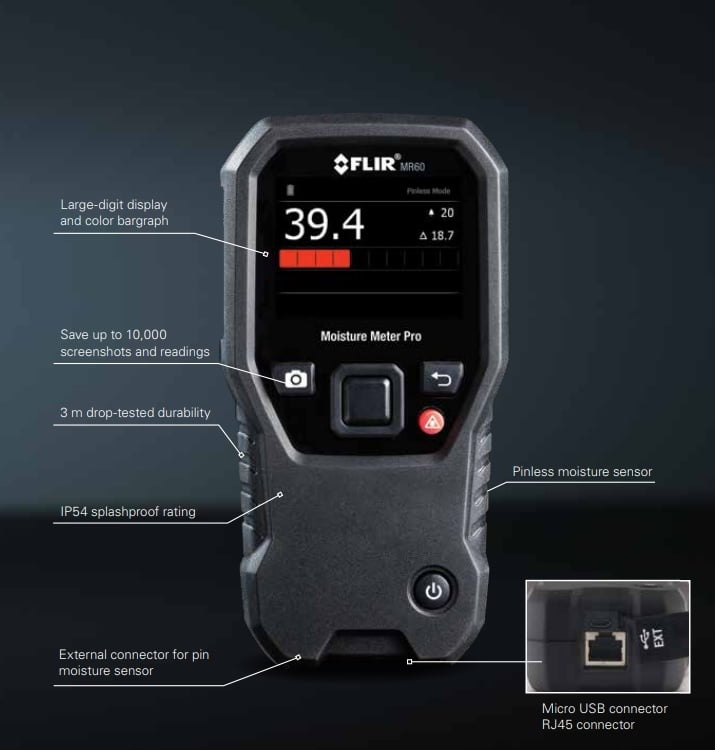

FLIR MR60 Moisture Meter Pro FEATURES:
Pin and Pinless – Integrated pinless moisture measurements for fast detection, and external pin probe included with expandable probe options
Color Display – Bright, easy-to-read display with large digits and color bargraph
Save Readings – Save up to 10,000 screenshots, then transfer and view them via PC/USB
FLIR Tools – Includes FLIR Tools professional reporting software for Mac or PC
Durable – Can withstand a 3-meter drop
Warranty – FLIR’s unique 2-10 warranty, covering parts and labor for two years and the detector for ten
CLEAR, ACCURATE READINGS
Choose from 11 material group selections for pin-based readings, then save up to 10,000 screenshots that you can transfer and view via PC/USB. Set a programmable alarm with audible and color visual alerts to notify you of high moisture.
FLEXIBILITY FOR DESTRUCTIVE OR NON-DESTRUCTIVE MEASUREMENTS
Quickly scan for moisture using the integrated pinless moisture sensor. An external pin probe is included for resistive moisture content measurements in a variety of substrates.
SIMPLE TO USE AND CREATE REPORTS
MR60 features a bright, easy-to-read color display and intuitive graphical user interface with helpful function labels in local languages. Save files and generate reports with free FLIR Tools PC software. No special training required!
FLIR MR60 Moisture Meter Pro SPECIFICATIONS:
| Pin Moisture Via External Probe Range | Wood groups 1-9: 1-5: oak, most maples, pine, hickory, teak, sycamore 6-9: building materials: plywood, drywall, OCD |
7% – 30% 30 % – 100% |
±1.5% (reference only) |
| Construction material groups: 10: brick, cement screed, concrete 11: cement mortar, anhydrite screed, lime mortar, plaster |
0- 20% | (reference only) | |
| Pinless Moisture Range | 0–100 relative measurement | ||
| Pinless Moisture Depth | 1.9cm maximum | ||
| Sample Rate | 10Hz (approx., both modes) | ||
| Measurement Resolution | 0.1 | ||
| Response Time Pinless | 100 ms | ||
| Response Time Pin Mode | 750 ms | ||
| GENERAL INFORMATION | |
|---|---|
| Display type (W × H) | QVGA (320 × 240) pixel 2.3” 64K color TFT graphical display |
| Stored Data File Format | Comma Separated Values (.csv) format with date/time stamp. Reading value, reading type included |
| Saved Image File Format | Bitmap (.bmp) with measurement values overlaid |
| Stored Image Capacity | 9999 images |
| Internal Memory | 4GB |
| Certification Standards | EN61326 (EMC), EN61010 (Battery + Charger) |
| Agency Approvals | FCC Class B, CE, UL |
| Power Requirements | Integrated rechargeable battery |
| Continuous Run Time | 18 hours max |
| Typical Usage | 4 work weeks |
| Auto Power Off | Programmable: OFF, 1, 5, or 20 minutes |
| Battery | 3.7 V, 3000mAh Li-ion rechargeable via micro USB |
| IP Rating/Drop Test | IP54 / 3m |
| Operating Temperature | 0~50 °C |
| Storage Temperature | -10~60°C |
| Operating Humidity | ≤ 90%, 0~30°C ≤ 75%, 30~40°C ≤ 45%, 40~50°C |
| Storage Humidity | 90% RH |
Downloads
FLIR MR60 User Manual
FLIR MR60 Data Sheet
Additional information
| Weight | 1 kg |
|---|---|
| Product Type |
